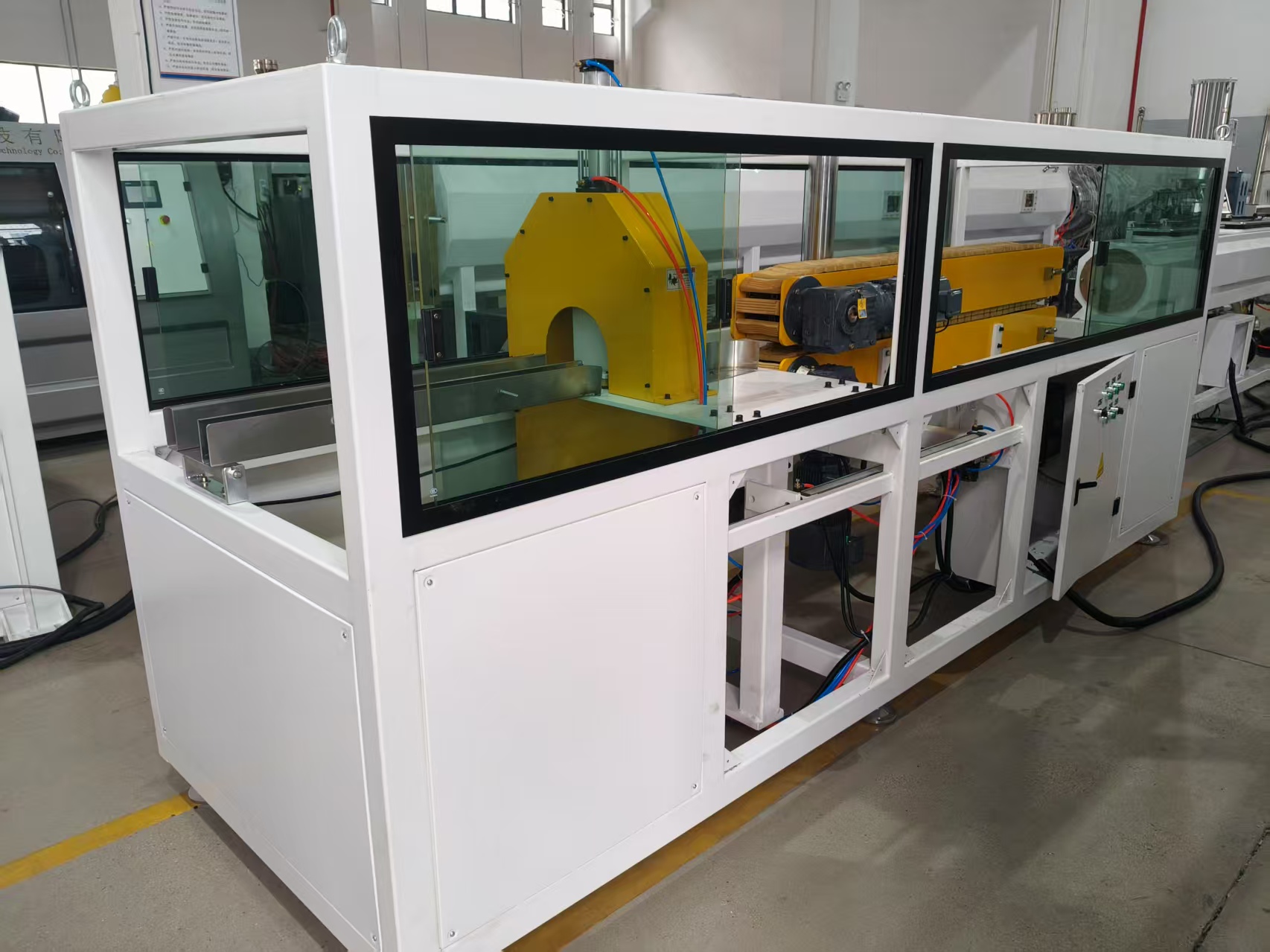

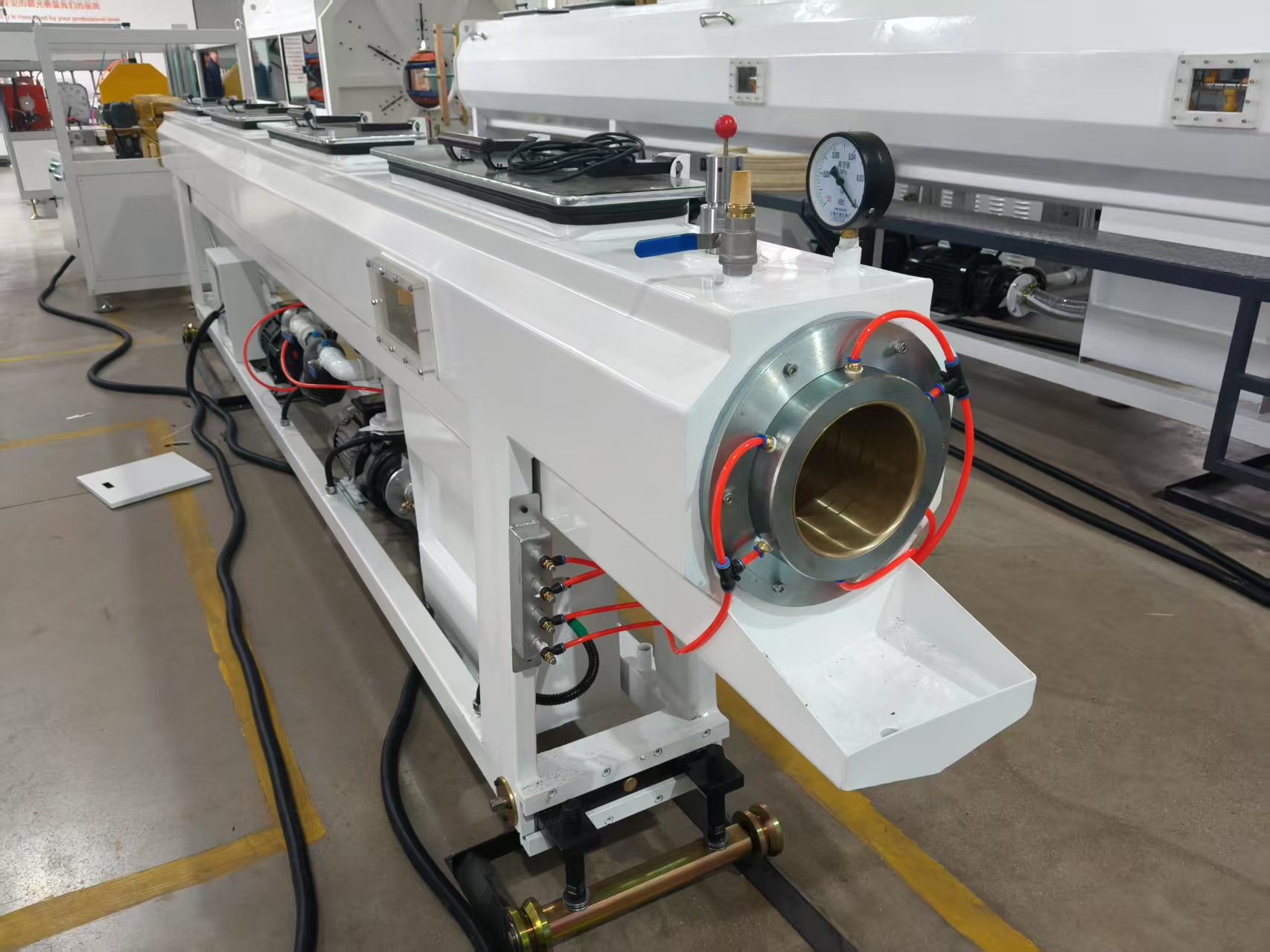

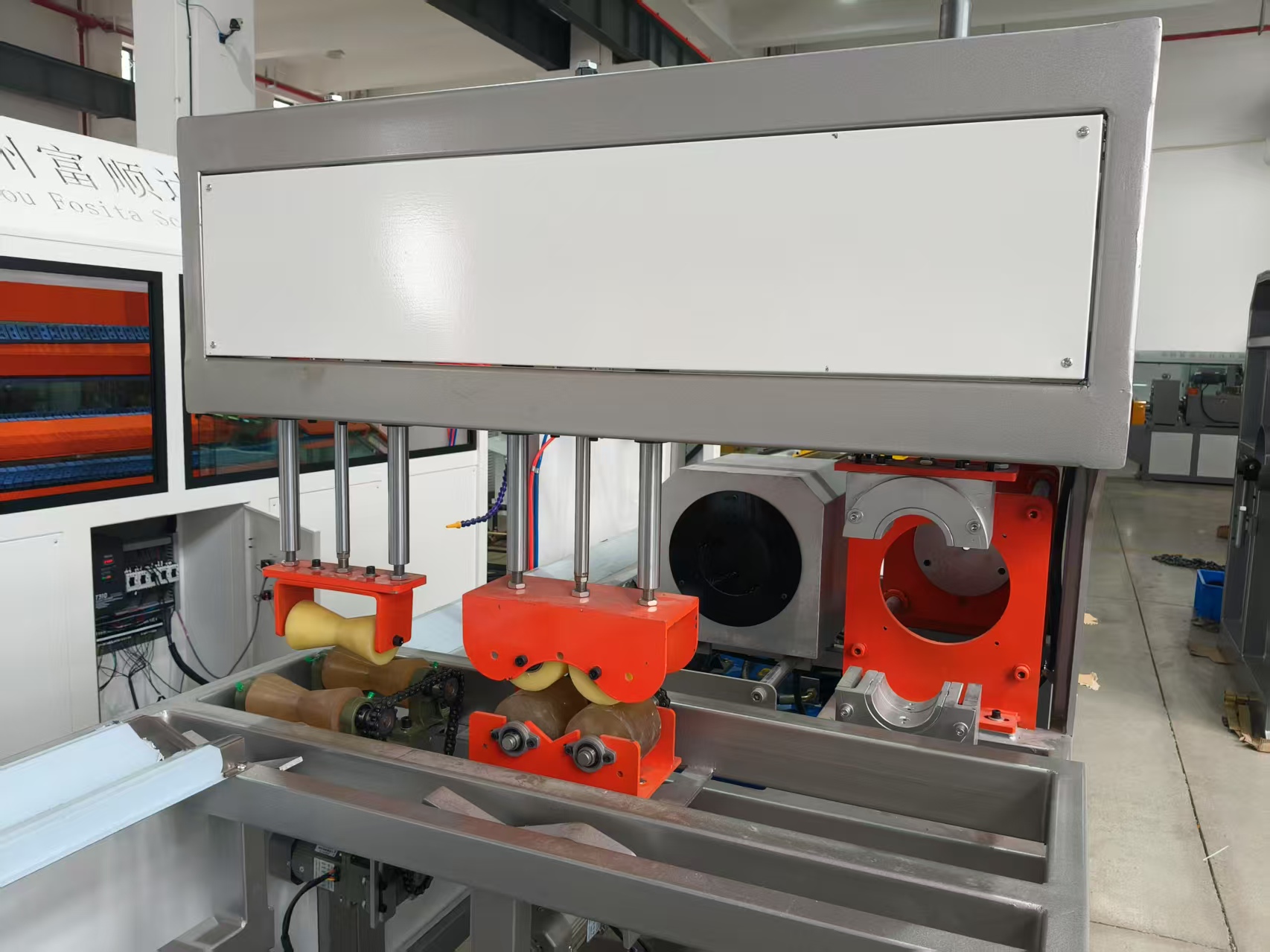

The PVC pipe production line consists of conical twin-screw extruder, mold, vacuum tank, haul-off machine, cutting machine, tracker and belling machine.The extruder is adopted with imported AC frequency conversion speed regulating device, and screw material is high quality alloy steel, Heating unit is mainly composed of cast aluminum heater and stainless steel casing, and has excellent thermal conductivity of metal alloy to ensure uniform temperature of hot surface. The vacuum pump and haul-off machine motor adopt famous brands. There are two-claw, three-claw, and six-claw traction methods. Saw blade or planetary cutting can be used. It can also be equipped with length counting and thickening devices.
PVC Pipe Production Process
Formulation→High-speed mixing→Conical twin-screw extrusion→Vacuum sizing, spray cooling→traction→fixed length cutting
Specifications
| Pipe line model | Diameter range(mm) | Extruder Model | Line Length(m) |
| FST-63 | 16-63 | SJSZ51/105 | 24 |
| FST-110 | 20-110 | SJSZ55/110 | 25 |
| FST-250 | 50-250 | SJSZ65/132 | 25 |
| FST-315 | 110-315 | SJSZ80/156 | 25 |
| FST-630 | 315-630 | SJSZ92/188 | 32 |
| FST-800 | 500-800 | SJSZ105/218 | 33 |
Applications:
The PVC pipe production line is mainly used in the production of agricultural water supply and drainage, building water supply and drainage, and cable laying.
Quick Detail
1.PVC Pipe Extrusion line, pvc pipe making machine
2.To make 16-630mm pvc pipes
3.Pipe diameter range 16-630mm
Competitive Advantage
1.Conical Twin Screw Extruder with high capacity.
2.Customized die head design.
3.Vacuum tank with Battlefield design and Kabra technology.
4.Planetary cutting with chamfering.
