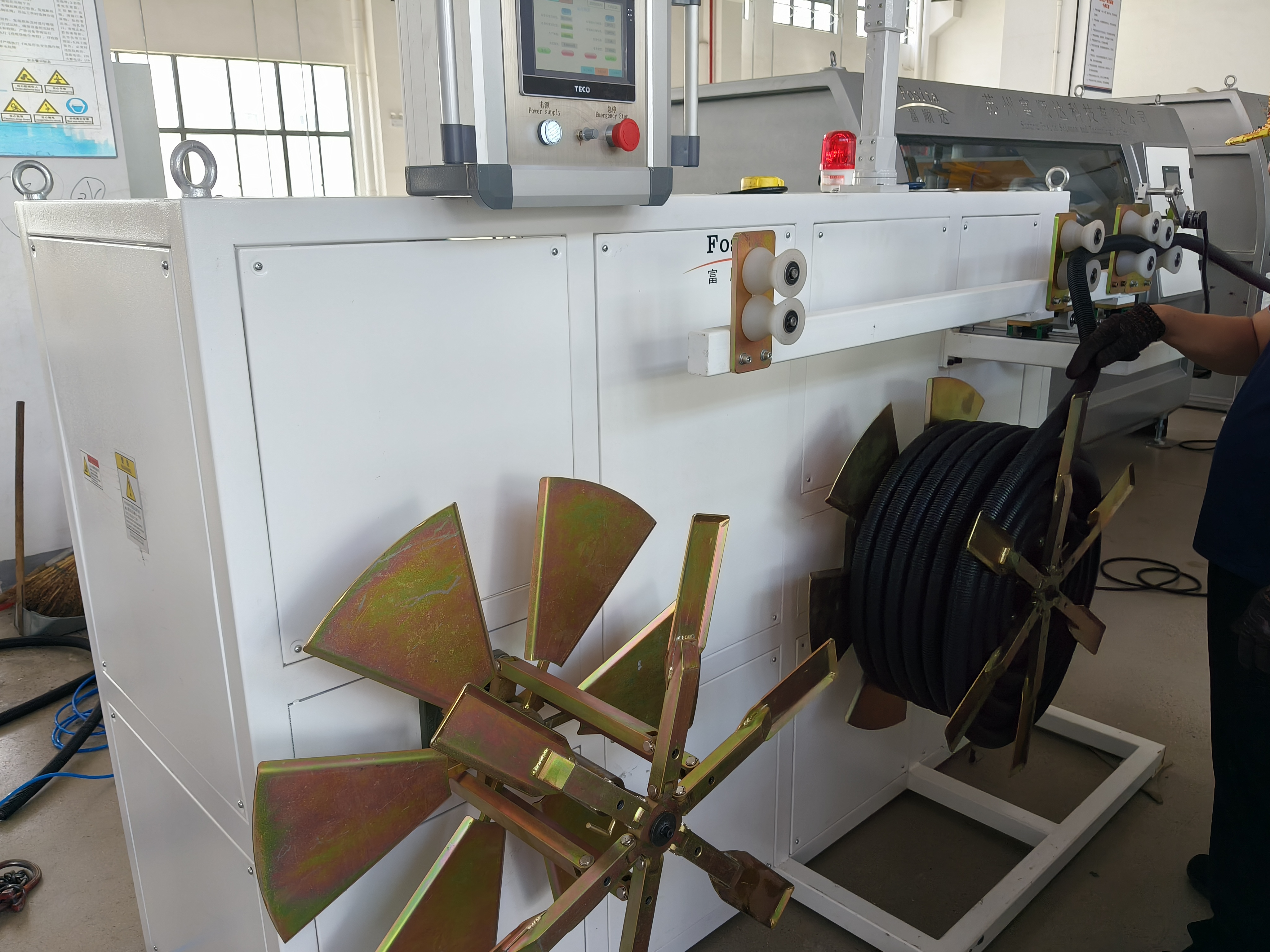

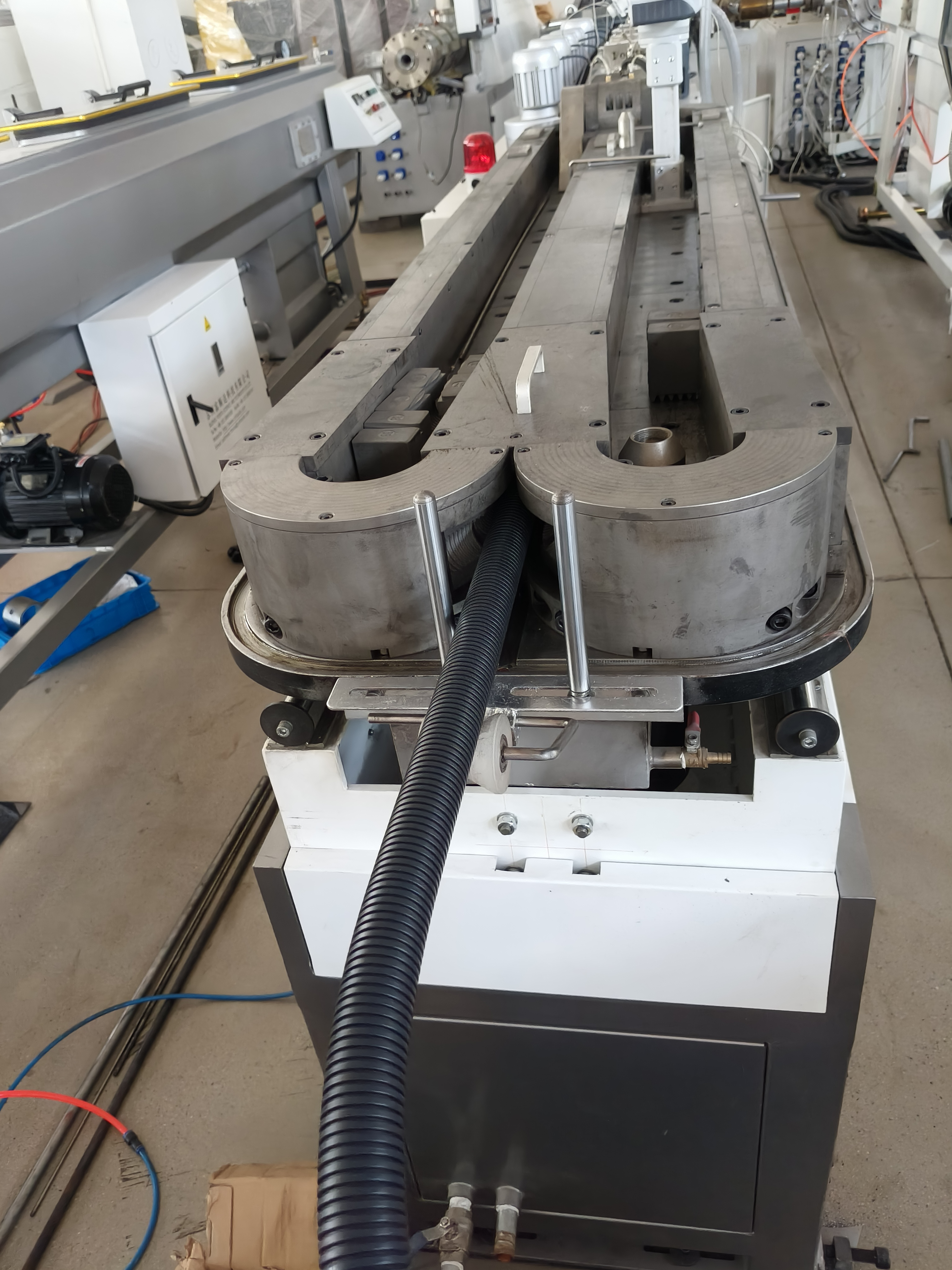

Fosita high-speed plastic corrugated pipe production line is used to produce12-50mm diameter single wall corrugated pipe in PE/PVC/PP material.This production line is combined with three parts: Singe screw extruder, pipe shaping machine and pipe winder machine. There are 72 pairs shaping mold on the shaping machine with individual shape.Molding corrugated pipe with smooth inside and outside surface is high quality in 25-30m/min fast running speed.The mold blocks can be easliy changed and they are equipped with air or water cooling system.The pipe winder machine is adpoted Siemens PLC control system to rooling the corrugated pipes in settled meters with stable speed.This line has features with good stability, fast forming speed, long service life, convenient operation and convenient module replacement.
Specifications
| Pipe line Model | Diameter Range(mm) | Extruder Model | Max Output(kg/h) | Max Machine Speed(m/min) | Main Motor Power(KW) | Line Length |
| FST-32 | 12-32 | SJ45 | 50 | 25 | 22 | 10 |
| FST-50 | 32-50 | SJ65 | 100 | 25 | 37 | 10 |
Applications:
Plastic corrugated pipe is very widely used in our daily life, It can be used such as threading pipe, drainage pipe, protector pipes, shisha pipe, shrinking pipe and so on.
Quick Detail
1.Shisha Hookah Pipe Making Machine
2.To make plastic corrugated pipea
3. 12-50mm
Competitive Advantage
1.Gear rack design with good performance of corrugator machine.
2.Mold block with durable and wear-resistant, also suitable for medical use.
3.Maximun speed can be 40m/min by Fosita design.
4.All line is equipped with Sciemens PLC.
